Planetary Gear Cluster

Planetary Gear Cluster is the core meshing component in a planetary transmission system, consisting of multiple planetary gears and their supporting structures, which play a crucial role in power distribution, torque transmission, and motion conversion. The performance of this precision component directly determines the reliability, efficiency, and service life of the entire transmission system.

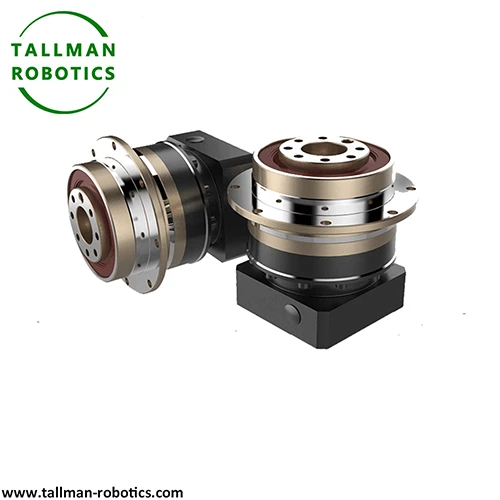

Here In this page, we introduce our PGF serial Planetary Gear Reducers, you will see datasheet,finished gearboxes,videos of test as follows:

Also You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Planetary Gear Cluster adopts a symmetrical distributed design,

usually consisting of 3-6 identical planetary gears, which are mounted on the planet carrier through high-precision planetary pin shafts. Each planetary gear is equipped with double row needle roller bearings or sliding bearings to ensure smooth operation. The planetary carrier is made of high-strength alloy steel and undergoes precision machining and dynamic balancing treatment to control the unbalance within G1.0 level. The entire component adopts a modular design, which is easy to install and maintain.

Planetary Gear Cluster has multiple excellent characteristics:

firstly, it has excellent power splitting ability, and multiple planetary gears participate in meshing at the same time, making the load distribution more uniform; Secondly, it has high motion accuracy and adopts precision manufacturing, with a cumulative error of less than 0.01mm in tooth pitch. Thirdly, it has outstanding reliability and a design life of over 100000 hours; In addition, maintenance is simple, standardized design is adopted, and replacement is quick.
