Ball Screw Driven Actuators

What are Ball Screw Driven Actuators?

Ball Screw Driven Actuators are High-Precision Industrial Linear Actuation Units.

A ball screw driven actuator is a compact electromechanical linear actuation unit for industrial automation. Specifically, it uses recirculating ball screw structures to convert rotary motion into precise linear thrust. Thus, it delivers steady, repeatable linear movement for automated industrial equipment.

Unlike standard linear modules, this integrated actuator unifies drive and motion structures. Meanwhile, it minimizes mechanical clearance for reliable precision actuation in industrial scenarios.

Integrated Mechanical Structure of Ball Screw Driven Actuators

First, the actuator adopts a rigid enclosed housing for structural protection. Second, it equips a precision ball screw shaft as the core drive component. Third, it installs a recirculating ball nut to enable low-friction linear travel.

In addition, internal linear guide rails stabilize the moving slider. Furthermore, a precision motor coupling connects power sources for stable torque transmission. Finally, built-in anti-dust fittings shield internal transmission parts.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

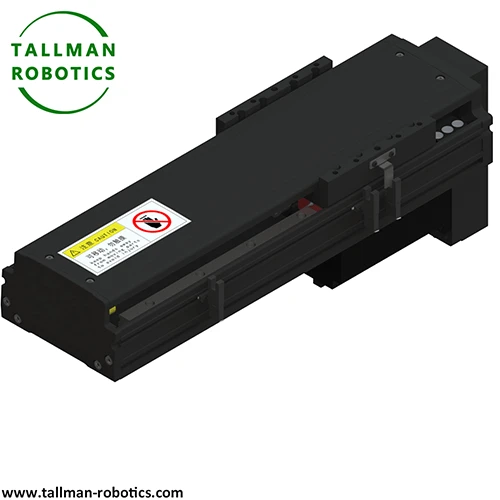

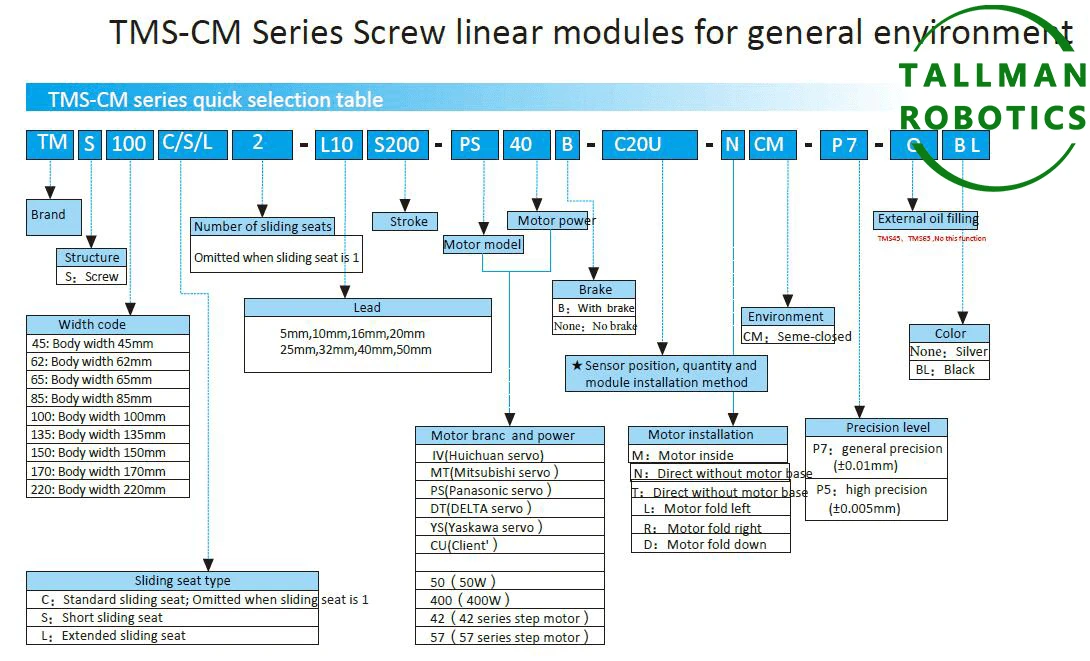

Here we introduce Ball Screw Driven Actuators, TMS62-CM with data as follows:

Frequently Asked Questions

Q1: What core differences exist between ball screw actuators and linear modules?

Ball screw driven actuators feature integrated all-in-one structures. They combine drive, guidance and protection parts in one unit, while linear modules require extra accessory assembly for full operation.

Q2: What industrial scenarios suit ball screw driven actuators best?

They fit precision, medium-load linear actuation scenarios. Common uses include semiconductor testing, 3C inspection, precision dispensing and new energy component processing equipment.

Q3: Which motors pair with ball screw driven actuators?

They match standard stepper motors and servo motors. Stepper motors suit regular positioning tasks, and servo motors adapt high-precision, fast-response actuation work.

Q4: Do ball screw actuators support customized travel ranges?

Yes. The actuators support customized linear travel to fit compact or extended mechanical layouts for diverse automated devices.

Q5: How to maintain ball screw driven actuators for stable operation?

Regularly lubricate internal ball screw and guide rail parts. Meanwhile, clean external dust and check fastener tightness to avoid operational jitter and positioning deviation.
