Electric Linear Slide Actuator

What is Electric Linear Slide Actuator?

An electric linear slide actuator is a modular electromechanical motion unit built for industrial automation. It merges linear slide rail and electric drive hardware into a single integrated module. Unlike generic linear actuators, this unit carries process loads without external guide accessories. It delivers repeatable linear slide motion for automated production machinery. It also provides precise positional stop for standard industrial processing tasks.

Core Structure of Linear Slide Actuator

First, a compact brushless drive motor provides steady power output for motion execution. Furthermore, a precision ball screw drive converts rotary torque into linear displacement. In addition, a high-rigidity linear slide rail restricts lateral movement during operation. Meanwhile, a built-in position sensor delivers real-time motion feedback for closed-loop control. Finally, a reinforced alloy outer frame secures internal components against workshop vibration.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

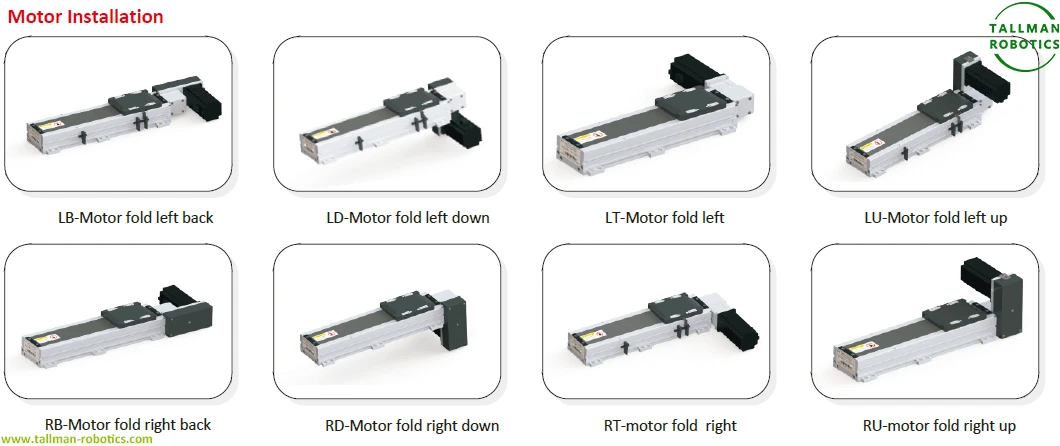

Here, we introduce CNC linear actuator , Fully Sealed TMB65-CR for clean environment with data as follows:

Industrial Application Purpose

Primarily, this linear slide actuator handles automated material feeding on compact assembly lines. Moreover, it undertakes accurate tool shifting for small-scale processing equipment. In addition, it achieves consistent component positioning for automated testing stations. Besides that, it standardizes repetitive manual sliding actions for unified production logic. It also adapts to limited mounting space in modular automation systems.

Standard Field Installation Steps

To begin with, operators clean and level the mounting base to eliminate surface deviation. Then, align the linear slide actuator to keep a parallel sliding plane with the load axis. Next, fasten reserved mounting holes with matched industrial standard fasteners. After that, complete low-voltage control wiring following industrial electrical specifications. Lastly, perform idle stroke debugging to verify fluent and stable sliding movement.

Technical Advantage Comparison

Practical Industrial Application Case

A consumer electronics assembly workshop applies this linear slide actuator for PCB auxiliary positioning. The actuator undertakes frequent short-stroke sliding and fixed-point stopping for component docking. It avoids position deviation caused by split structure assembly errors. It also removes regular guide rail correction maintenance for the production station. This practical application proves its structural advantages for high-frequency automated positioning scenarios.

Frequently Asked Questions

Q1: What core advantage makes linear slide actuators different from common linear actuators?

It adopts all-in-one structural design that integrates drive and guide functions, removing the need for extra auxiliary guide parts.

Q2: What high-frequency industrial scenarios fit this slide actuator?

It fits electronic assembly, precision product testing, automatic tool switching and small-stroke material conveying stations.

Q3: Can this slide actuator adapt to different automation control systems?

It supports mainstream industrial control signal access and allows flexible adjustment of sliding speed and effective stroke range.

Q4: What core components guarantee the actuator's positioning stability?

The matched precision ball screw and integrated slide rail, combined with real-time sensor feedback, ensure consistent positioning accuracy.

Q5: Does integrated structural design increase field installation difficulty?

No, modular pre-assembly simplifies field operation, and only basic fixation and wiring inspection are required before use.
