Electric Linear Motion Actuator

Electric Linear Motion Actuator is an electromechanical integrated device that converts electrical energy into precise linear motion. It achieves high-precision and high reliability linear displacement control through motor drive combined with precision transmission mechanism, and has become an indispensable key component in industrial automation, medical equipment, aerospace and other fields.

Electric Linear Motion Actuator is mainly composed of a motor, transmission mechanism, guidance system, and control system. As a power source, motors usually use servo motors or stepper motors; The transmission mechanism includes ball screws, planetary roller screws, or synchronous belts, etc; The guidance system ensures motion accuracy; The intelligent control system achieves precise position and speed control. During operation, the motor rotation is converted into linear motion through the transmission mechanism, and the encoder provides real-time feedback on position information to form a closed-loop control.

Electric Linear Motion Actuator, as key components in modern industrial automation and many other fields, plays an important role that cannot be underestimated. It can efficiently and accurately convert the rotational motion of the motor into linear motion, endowing various devices with the ability to achieve precise linear displacement.

From a structural perspective, Electric Linear Motion Actuator generally includes components such as motors, screws (commonly such as trapezoidal screws, ball screws, etc.), nuts, slide seats, guide rails, and housings. As a power source, the motor drives the lead screw to rotate during operation. The lead screw and nut are threaded together to convert the rotational motion into a linear motion of the nut along the axis of the lead screw. The sliding seat connected to the nut, under the precise guidance of the guide rail, achieves smooth and high-precision linear movement, thereby pushing the load to complete the predetermined action.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

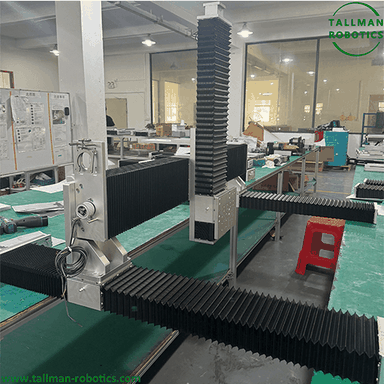

Here, we introduce Electric Linear Motion Actuator, Fully Sealed for clean environment with data as follows:

Electric Linear Motion Actuator has many highlights. Its speed can be flexibly adjusted according to different application scenarios, and some high-speed models can run at a speed of several meters per second, greatly improving work efficiency, such as in automated sorting equipment, which can quickly transfer items. The load capacity is also considerable, capable of handling loads ranging from several kilograms to several tons, such as material handling for some heavy industrial equipment. The positioning accuracy is even more outstanding. With advanced control technology and precise mechanical structure, the positioning accuracy of common products can reach ± 0.01mm or even higher. It is widely used in industries such as electronic manufacturing and medical equipment that require high accuracy.

Compared to hydraulic and pneumatic actuators, Electric Linear Motion Actuator does not require complex hydraulic or pneumatic auxiliary systems, is easy to install, occupies small space, consumes less energy, operates quietly, has simple maintenance, and reduces usage costs and downtime.

Electric Linear Motion Actuator has a wide range of applications. In industrial automation production lines, responsible for tasks such as material handling, parts assembly, and switching of processing stations; In medical equipment, assist operating tables, medical testing instruments, etc. to achieve precise positioning and movement; In smart homes, control the opening and closing of curtains, the lifting and lowering of furniture, etc. From automobile manufacturing to food processing, from logistics and warehousing to intelligent office, its presence is everywhere, injecting strong impetus into the intelligent and efficient development of various industries.
