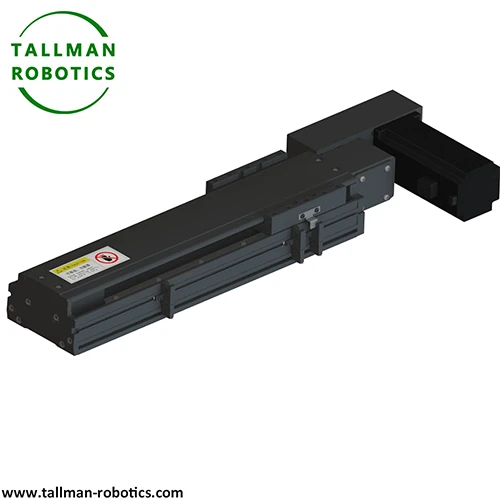

Linear Actuator With Timing Belt

Linear Actuator with Timing Belt is a high-performance automated linear actuator that integrates synchronous belt transmission technology and precision linear guides. It efficiently and smoothly converts the rotational motion of the motor into smooth linear motion through precise meshing of synchronous belt teeth and pulleys, making it an ideal solution for achieving high-speed, long stroke, and high repeatability positioning accuracy in modern industrial equipment.

Linear Actuator with Timing Belt is an automation core component that deeply integrates synchronous belt transmission technology with linear motion systems. With precise and efficient transmission performance, it occupies an important position in industrial production and intelligent equipment.

Linear Actuator with Timing Belt structure consists of a drive motor, synchronous belt components, linear guides, and sliders. Servo motors or stepper motors are commonly used as driving motors to ensure stable power output and precise control; The synchronous belt is made of polyurethane material and embedded with steel wire or aramid fiber reinforcement layer. It achieves zero sliding and seamless transmission through precise meshing with the pulley through tooth profile; Linear guides are usually ball or roller guides that provide high-precision guidance for the slider, ensuring smooth and rigid motion; The slider is fixedly connected to the synchronous belt, carrying the load and achieving linear displacement along the guide rail. When working, the motor drives the active pulley to rotate, and the synchronous belt drives the slider to reciprocate on the guide rail, efficiently converting the rotational kinetic energy into linear motion.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Here, we introduce our Linear Actuator with Timing Belt,with data as follows:

Timing Belt Linear Module for General Environment TM-B-CM

Timing Belt Linear Module for Dust-proof Environment TM-B-CR

The advantages of Linear Actuator with Timing Belt is significant. Firstly, it has excellent speed performance and no self-locking feature, allowing its linear speed to reach 5m/s or more, meeting the needs of high-speed sorting, fast handling and other scenarios; Secondly, the positioning is precise. The non slip transmission of the synchronous belt, combined with high-precision guide rails, can achieve a positioning accuracy of ± 0.05mm, making it suitable for precision assembly; Thirdly, it is silent and energy-saving, with a running noise that is 15dB lower than gear transmission, and a transmission efficiency of over 90%; Fourthly, it has strong adaptability to long travel, and a single synchronous belt can achieve several meters of travel, breaking through the limitations of traditional screw rods; Fifthly, maintenance is simple, reducing lubrication requirements by 60% compared to screw systems and lowering maintenance costs.

However, Linear Actuator with Timing Belt also has limitations, such as limited load-bearing capacity and is generally suitable for loads below 50kg; Under long-term operation, synchronous belts may experience elastic deformation due to fatigue and require regular testing and replacement. With the application of new materials such as carbon fiber reinforced synchronous belts and intelligent monitoring technology, synchronous belt linear actuators are developing towards higher precision and stronger load capacity, continuously empowering intelligent manufacturing upgrades.
