Washdown RV Reducer is a precision transmission component designed for harsh working conditions that require high-frequency and high-pressure flushing. Its core is adapted to the environmental requirements of "high humidity, multiple stains, and strong corrosion".
The SC washdown RV reducer is purpose-built for food processing, beverage production, pharmaceutical manufacturing, and any industrial automation environment subject to high-pressure cleaning, chemical washdown, and sustained moisture exposure. Combining the proven precision of RV cycloidal gear technology with fully sealed, corrosion-resistant construction, our washdown RV gear reducer maintains positioning accuracy and drivetrain integrity through rigorous sanitation cycles without accelerated wear or seal failure.
The internal cycloidal pin-wheel mechanism retains all the load-bearing and rigidity advantages of a conventional RV gear reducer: high torsional stiffness, multi-point contact load distribution, and shock resistance suited to fast servo axes. IP67 and IP69K ratings are standard, ensuring performance is unaffected by high-temperature washdown jets common in meat processing and dairy automation lines.
Here we introduce SC Washdown RV Reducer from TallMan Robotics, you will see data sheet, production pictures,videos as follows:
|

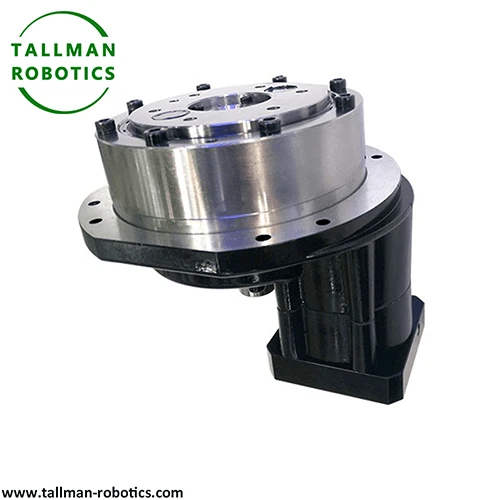

RV-SC Series: Input Flange Hollow Type Cycloidal Gearboxes |
|
|
|
|
|
|
||||
Industrial automation case studies
FOOD PROCESSING
Servo portioning robot on a high-speed poultry cutting line
A large poultry processor operating three-shift cutting lines required a joint-axis drive for a 4-axis portioning robot that could withstand daily chlorinated washdown at 80°C. Previous standard RV reducers showed seal degradation within four months, causing grease migration into the food zone - a direct compliance failure. Replacing them with SC washdown RV reducers eliminated seal failures entirely. Over a 12-month validation period, no lubrication ingress events were recorded, and the line maintained full USDA inspection compliance throughout.
Zero contamination events over 12 months
BEVERAGE AND BOTTLING
Rotary indexing drive on a CIP bottle rinse carousel
A bottling plant running continuous CIP cycles needed a corrosion-resistant RV drive for the indexing axis of a high-throughput rinse carousel. Caustic soda and peracetic acid solutions used in the CIP process were attacking the housing and bearing seats of the existing units, causing failure every six to eight weeks. Our SC washdown RV gear reducer, with its chemically resistant exterior and sealed internal cavity, extended service intervals to over 14 months with no unplanned stoppages.
Service life extended 8x
FAQ:
1. What is the rated output speed of Washdown RV Reducer?
Rated output speed means the maximum continuous output rotational speed. The gearbox can operate at this speed safely. It ensures stable thermal performance and reliable lubrication.
2. What are the problems if the speed of Washdown RV Reducer exceeds this limit?
Exceeding rated speed causes excessive heat generation. Lubrication film may break down. Bearing life decreases significantly. Seals may fail. Higher noise and vibration occur.
3. What is the transmission efficiency of the gearbox?
Transmission efficiency means the ratio of output power to input power. It represents how effectively the gearbox transfers power. RV reducers typically achieve 80% to 90% efficiency.
4. Where is the main manifestation of energy loss?
Energy loss mainly manifests as heat generation. Friction between gear teeth creates heat. Bearing friction contributes to losses. Lubrication churning also dissipates energy.
5. What is the moment of inertia of Washdown RV Reducer? Why should we consider it when matching servo motors?
Moment of inertia measures an object's resistance to rotational acceleration. It represents mass distribution relative to the rotation axis. Matching inertia ensures proper servo control response. High inertia mismatch causes overshoot and settling issues.
