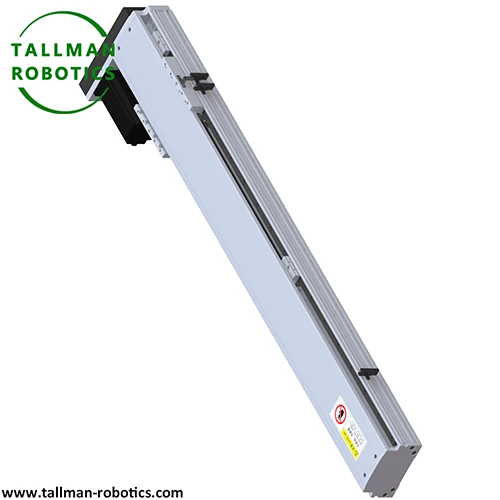

Linear Motion Slide

Linear Motion Slide is Linear guide, also called linear guides, slides, linear guides, and linear slides. Linear Motion Slide is used for high-precision or high-speed linear reciprocating motion, and can bear a certain torque, and can achieve high-precision linear motion under high load. It is called linear guide in the mainland, and generally called linear guide or linear slide in Taiwan.

Linear Motion Slide can be divided into three types: roller linear guides, cylindrical linear guides, and ball linear guides. They are used to support and guide moving parts and perform reciprocating linear motion in a given direction. Depending on the nature of friction, linear motion guides can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides and other types.

Basic Specification of Linear Motion Slide

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

The function of Linear Motion Slide is to support and guide the moving parts to make a reciprocating linear movement in a given direction. Depending on the nature of friction, linear motion guides can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides and other types. Linear bearings are mainly used in automated machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc. Of course, linear bearings and linear shafts are matched. Like linear guides, they are mainly used in mechanical structures that require relatively high precision. There is no intermediate medium between the moving elements and fixed elements of the linear guides, but rolling steel balls.

Application field of Linear Motion Slide:

1. Linear guides are mainly used in automated machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc. Of course, linear guides and linear axes are matched.

2. Linear guides are mainly used in mechanical structures with relatively high precision requirements. There is no intermediate medium between the moving and fixed components of the linear guide, but rolling steel balls. Because the rolling steel ball is suitable for high-speed motion, has a small friction coefficient and high sensitivity, it can meet the working requirements of moving parts, such as the tool rest and carriage of machine tools. If the force acting on the steel ball is too large, the steel ball will withstand the preload for too long, which will increase the movement resistance of the bracket.
