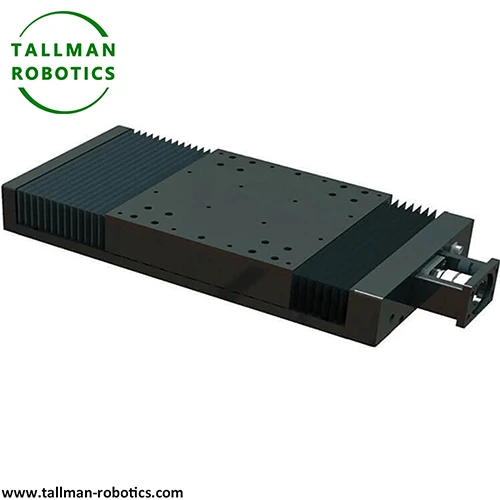

Precision Linear Stage

Precision Linear Stage is an electromechanical integrated platform designed specifically for achieving ultra-high precision and ultra-high resolution linear positioning and motion. It goes beyond the concept of ordinary linear modules and is the culmination of precision machinery, automatic control, materials science, and cutting-edge technology. Its performance indicators often reach the micrometer (μ m) or even nanometer (nm) level, making it an indispensable core equipment in high-end scientific research and industrial manufacturing.

Precision Linear Stage is a core device for achieving high-precision linear motion, widely used in fields such as semiconductor manufacturing, biomedicine, and optical detection that require extremely high precision. Its core value lies in transforming micro - or even nano level displacement accuracy from theory to practical application. ​

Precision Linear Stage is mainly composed of a drive system, a transmission mechanism, and a guide component. The driving system often uses stepper motors or servo motors, and achieves closed-loop feedback control through encoders or grating rulers; The transmission mechanism is mainly composed of ball screws, linear motors, or flexible hinges. Among them, ball screws have become mainstream due to their high transmission efficiency and positioning accuracy, while linear motors eliminate mechanical wear and achieve ultra high speed and high-precision motion through non-contact electromagnetic drive; The guiding components are generally cross roller guides or air floating guides. The former provides rigid support through densely arranged rollers, while the latter uses compressed air to form an air film, reducing the friction coefficient to almost zero and ensuring smooth and stable motion. ​

Basic Specification of Precision Linear Stages:

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Precision Linear Stage core performance is reflected in ultra-high precision, repeatability, and stability. The positioning accuracy can reach sub micron or even nanometer level, and the repeated positioning accuracy can be controlled within ± 0.1 μ m, meeting the requirements of precision operations such as chip lithography and atomic force microscopy scanning; The use of finite element optimization design for rigid frames and thermally stable materials can reduce the impact of environmental temperature and vibration on motion accuracy; Some high-end displacement platforms also integrate vacuum compatibility, cleanroom specific features, and are suitable for special working environments. ​

In semiconductor manufacturing, Precision Linear Stage is used for wafer alignment and positioning in lithography and etching machines to ensure precise engraving of chip circuit patterns; In the biomedical field, it supports cell microscopy and sample movement of gene sequencers, facilitating single-molecule level research; In the field of optics, displacement tables provide stable optical path adjustment for spectrometers and interferometers, achieving nanoscale optical path control; In scientific research experiments, its high-precision characteristics support cutting-edge research such as microelectromechanical systems (MEMS) processing and material mechanical property testing. With the development of intelligent manufacturing and cutting-edge scientific research, precision linear displacement tables are continuously innovating towards higher precision, intelligence, and multifunctional integration.
