What is Belt Drive Linear Motion Guide Actuator?
A belt drive linear motion guide actuator is a monolithic electromechanical module designed exclusively for industrial automation operation. It combines synchronous belt transmission and precision linear guide integration into a single assembled unit. It converts rotational motor output into steady, straight linear mechanical movement. Unlike standalone linear drive components, this integrated unit prioritizes travel stability and motion flatness. It adapts continuous high-cycle operation for modern automated production and conveying systems.
Professional Integrated Structural Composition
This industrial motion module adopts high-response drive motors to deliver consistent power output. It utilizes high-tensile toothed belts to achieve synchronous friction-free transmission. It also equips precision linear motion guides to eliminate lateral motion deviation. Symmetric positioning pulleys standardize belt operation tracks to avoid running offset. Furthermore, integral aluminum alloy profiles strengthen overall module structural rigidity.
You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

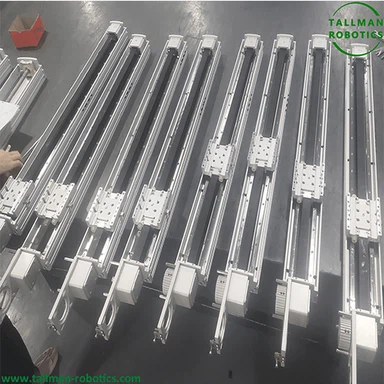

Here, we introduce Belt Drive Linear Motion Guide Actuator, TMB145-CM for general environment with data as follows:
Target Industrial Application Scenarios
This linear motion guide actuator supports ultra-long-stroke material conveying for warehouse automation. It also enables rapid workpiece shifting for automated packaging and assembly lines. Additionally, it delivers large-range precise positioning for industrial sorting machinery. It matches cyclic reciprocating displacement for automated detection and testing devices. It perfectly adapts modular automation layouts requiring flexible linear travel.
Standard On-Site Installation Specifications
Technicians first clean and level mounting bases to eliminate uneven stress points. Next, they calibrate the actuator's horizontal level to guarantee parallel guide operation. Then, they fasten the module firmly through reserved standardized mounting holes. After physical fixation, workers complete standardized power and signal wiring. Finally, idle stroke debugging verifies smooth, stable linear guide movement.
Belt Drive vs Screw Drive Technical Performance Comparison
|
Technical Item |
Belt Drive Linear Motion Guide Actuator |
Screw Drive Linear Actuator |
|---|---|---|
|
Stroke Adaptability |
Supports extended ultra-long travel with zero motion attenuation or track deviation |
Limited maximum travel restricted by physical screw rod dimensions |
|
Motion Response |
Low-resistance belt transmission enables fast cyclic reciprocating motion |
Thread contact friction slows dynamic response and cycle frequency |
|
Operational Stability |
Built-in guide rail maintains flat, consistent linear motion tracks |
Requires external auxiliary guides to reduce lateral movement offset |
Frequently Asked Questions
Q1: What core advantage defines belt drive linear motion guide actuators?
Its integrated belt transmission and linear guide structure unifies long-stroke travel and motion flatness, outperforming split traditional actuators.
Q2: Which industrial scenarios suit this integrated motion module?
It applies to warehouse automated conveying, packaging line shifting, large-range sorting and cyclic product detection systems.
Q3: How does the built-in guide improve long-term operation?
The precision linear guide limits lateral deviation, maintaining consistent motion tracks even in frequent cyclic operation.
Q4: What key strengths separate belt drive from screw drive units?
It provides longer effective travel, faster dynamic response and superior flexibility for large-stroke automation workflows.
Q5: What daily maintenance does this guide actuator require?
Its wear-resistant belt and rigid guide structure only need routine visual inspection without complex regular calibration.
