Linear Belt Drive Module

What is Linear Belt Drive Module?

A linear belt drive module is a general term for a catalog-standard linear positioning component that uses belt-and-pulley transmission as its actuation method, typically sold as an off-the-shelf building block specified primarily by stroke, load, and speed ratings rather than by a specific mechanical sub-type (enclosed slide, open rail, toothed belt profile, etc.). The term is commonly used in supplier catalogs as a broad product-family label covering various belt-actuated linear motion products that share the same fundamental belt-drive operating principle.

Structure

The module typically comprises an aluminum extrusion or channel base, a linear guide system (recirculating ball bearings or roller guides) supporting a traveling carriage, and a belt loop running between a motor-driven pulley and a tensioned idler pulley, with the carriage clamped rigidly to the belt so it tracks the belt's motion precisely. Standard product lines often offer a range of pre-configured sizes and stroke lengths, with motor mounting brackets, encoder options, and end-of-travel sensors available as selectable accessories rather than custom-engineered features.

Selection Considerations

Key factors include stroke length from the available catalog range, load capacity (static and dynamic), maximum speed and acceleration, positioning repeatability, motor mounting compatibility, and accessory options (limit switches, cable carriers, protective covers). Buyers should compare catalog performance curves across the belt width and guide type offered, since standard product families often bundle several guide/bearing options under one module family name.

Applications

Linear belt drive modules are broadly applied across general factory automation, packaging equipment, pick-and-place stations, sliding mechanisms, and OEM machine building wherever a standard, catalog-sourced belt-actuated linear axis meets the application's speed, load, and travel requirements without custom engineering.

Installation Considerations

The module base must be mounted on a flat, rigid surface per the manufacturer's flatness tolerance to avoid introducing stress into the guide system. Belt tension should be set to the catalog-specified value using the supplier's recommended tensioning procedure. Motor coupling and any accessory sensors should be installed per the standard mounting template, and full-stroke test runs should confirm smooth operation before the module is released to production.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Here, we introduce our Linear Belt Drive module,with data as follows:

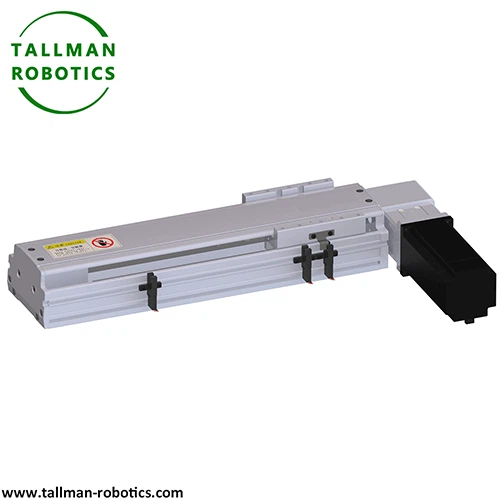

Timing Belt Linear Module for General Environment TM-B-CM

Timing Belt Linear Module for Dust-proof Environment TM-B-CR

FAQ

Is "linear belt drive module" a specific product type or a general category?

It's generally used as a broad category label covering various belt-actuated linear positioning products, rather than referring to one specific mechanical design.

What accessories are commonly available with catalog linear belt drive modules?

Common accessories include motor mounting brackets, limit/home sensors, cable carriers, protective bellows or covers, and various guide/bearing upgrade options.

How do suppliers typically size a linear belt drive module for an application?

Sizing is generally based on required stroke, payload weight, desired speed/acceleration, and duty cycle, matched against the supplier's published load and performance curves for each module size.

Can linear belt drive modules be ordered in custom stroke lengths?

Many suppliers offer standard stroke increments but can accommodate custom lengths within certain limits; this should be confirmed directly with the manufacturer's engineering or sales team.

What's the typical lead time consideration when specifying a catalog linear belt drive module?

Standard catalog sizes generally ship faster than custom configurations, so specifying within the supplier's standard stroke and accessory options can reduce lead time compared to fully custom builds.
