Heavy Duty Linear Motion Module is an integrated linear transmission system designed to withstand extreme loads and harsh working conditions, capable of achieving precise and stable linear motion in high load and high impact environments. Heavy Duty Linear Motion Moduleis a core executing component in heavy industrial automation.
Category
Heavy Duty Linear Modules

Send Inquiry
Description
Technical Parameters

What is Heavy Duty Linear Motion Module?

Heavy duty linear motion modules are integrated all-in-one motion units for harsh industrial automation. They combine rigid guiding and powerful transmission structures. They deliver stable linear displacement under heavy static and dynamic loads. They support continuous high-intensity operation for heavy industrial processing equipment.

Core Structural Composition

First, high-rigidity steel alloy frames build solid module foundations. Second, reinforced roller guide assemblies ensure heavy-load sliding stability. Third, high-strength drive components provide steady linear thrust. Meanwhile, integrated load carriages evenly disperse mechanical stress. Lastly, reinforced mounting bases lock overall structural stability.



356

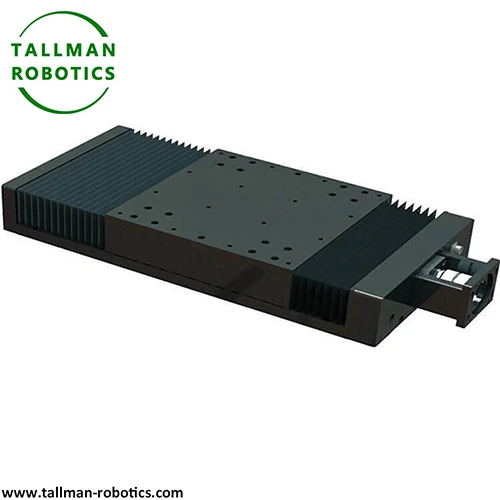

Here, we introduce Industrial Heavy Duty Linear Motion Modules, TMK300 for general environment or dustproof or waterproof applications with data as follows:

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

TMK300-CM Open type and TMK300-CR Closed type

Motor Power

400/750

Repeatability

±0.01/±0.005

Screw Lead

5

10

20

32

Max Speed at motor speed at 3000rpm

250

500

1000

1600

Max Load (kgs)

Acceleration

Horizontal

0.3G

385

220

105

63

Deceleration

Vertical

0.3G

92

42

13

-

Rated Thrust(N)

2100

1190

603

375

Linear Guide Rail

25×18-2

Home Sensors

Inside EE-SX674(NPN) EE-SX674P (PNP)

31
32
33
34
35
36
37
38

Technical Functions & Core Advantages

This module handles multi-directional heavy industrial loads. Furthermore, it resists structural deformation under long working stress. It also maintains smooth motion in frequent impact scenarios. In addition, it unifies guiding and driving for simplified equipment assembly.

Item

Heavy Duty Linear Motion Module

Ordinary Linear Motion Module

Structural Design

Integrated rigid frame and roller guide structure

Lightweight frame for basic linear movement

Load Performance

Stable operation under multi-angle heavy loads

Only adapts single light-load working mode

Cyclic Stability

No precision drift after long cyclic operation

Obvious performance decay under heavy circulation

Frequently Asked Questions

Q1: What industrial scenarios apply to this motion module?

It fits heavy gantry handling systems, automotive component assembly, large workpiece machining and industrial palletizing automation. It serves all heavy-load scenes requiring integrated linear motion output.

Q2: What makes it different from heavy duty linear slides?

It is a complete integrated motion unit with built-in drive and guiding systems. Linear slides only provide single guiding support without matched transmission structures for automated operation.

Q3: Can it bear irregular dynamic industrial loads?

Yes. Its roller guide assembly disperses multi-directional stress evenly. It maintains balanced linear motion under unbalanced dynamic heavy loads and mechanical impact.

Q4: What core parts guarantee long-term heavy-duty performance?

High-rigidity steel frames and reinforced roller guides avoid structural deformation. High-strength drive assemblies and load dispersion carriages sustain stable long-cycle heavy-load operation.

Q5: Does integrated structure affect equipment installation flexibility?

No. The unified modular structure reserves standard mounting interfaces. It simplifies on-site assembly and supports multi-module combination for complex automation layouts.
