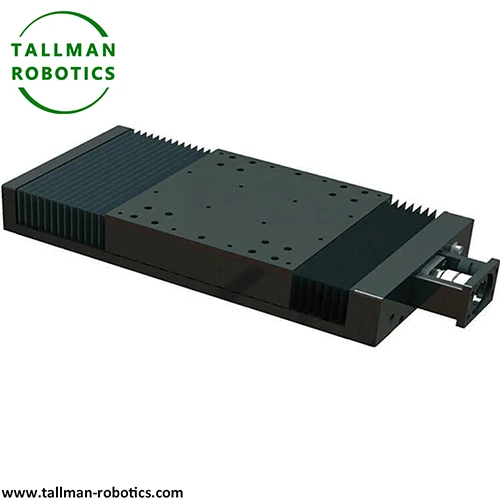

Industrial Heavy Duty Linear Slide

Industrial Heavy Duty Linear Slide is a precision mechanical component that can achieve linear motion of heavy loads under high-intensity working conditions. It is designed specifically for high load and high rigidity requirements in industrial environments, providing stable linear guidance and displacement functions. Industrial Heavy Duty Linear Slide is the core transmission component of heavy automation equipment. Its core characteristics are strong load-bearing capacity (usually able to withstand loads of hundreds of kilograms to tens of tons), excellent resistance to deformation, and the ability to maintain motion accuracy in continuous impact or vibration environments.

The working principle of Industrial Heavy Duty Linear Slide is based on the "guidance drive" collaborative mechanism:

power is provided by a driving source (such as a servo motor), and the rotational motion is converted into linear motion through transmission mechanisms such as ball screws or gear racks; At the same time, the guidance system composed of heavy-duty guide rails and sliders disperses the load through multi-point contact, limiting the motion trajectory only along the straight line direction, offsetting lateral forces and overturning moments, and ensuring motion stability under high loads.

The structure of Industrial Heavy Duty Linear Slide emphasizes high strength and durability:

The main body of the guide rail is often made of high carbon steel or cast iron that has undergone quenching treatment, with a square or rectangular cross-section. The guide rail surface is precision ground to ensure straightness;

The slider is equipped with multiple large ball or roller bearings inside, which are closely attached to the guide rail, with a large contact area and significantly higher load-bearing capacity than ordinary slide rails;

The base and bracket are welded or cast together with thick walled steel, and some are reinforced with ribs to enhance overall rigidity;

Equipped with dust-proof sealing devices (such as metal scraper, rubber sealing ring) and automatic lubrication system, suitable for harsh industrial environments such as dust and oil pollution.

Here, we introduce Industrial Heavy Duty Linear Slide Modules, TMK200 for general environment or dustproof or waterproof applications with data as follows:
You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

The application scenarios of Industrial Heavy Duty Linear Slide Module are concentrated in the field of heavy industry:

Heavy industry production: steel billet conveying for metallurgical equipment, slide guidance for heavy-duty presses;

Logistics and warehousing: translation mechanism for port cranes, lifting rails for large three-dimensional warehouse stackers;

Machine tools and manufacturing: worktable movement of large gantry milling machines, linear positioning of ship welding equipment;

Special engineering: Conveyor slides for mining machinery, walking mechanisms for heavy-duty robots.

Compared with ordinary linear modules, Industrial Heavy Duty Linear Slide Modules sacrifices some of its lightweight characteristics and gains high load capacity and fatigue resistance through reinforced structural design. It is a key component for achieving precise linear motion in industrial heavy-duty automation systems.
