Water Resistant Belt Driven Linear Modules

Water Resistant Belt Driven Linear Modules, also known as waterproof belt driven linear modules, are linear motion devices with synchronous belts as the transmission core and waterproof performance. They can achieve high-speed and smooth linear transmission in humid, wet, or frequently cleaned environments, while also considering transmission efficiency and protection capabilities.

The working principle of Water Resistant Belt Driven Linear Modules is based on the combination of belt transmission and sealing protection. During transmission, the motor drives the synchronous pulley to rotate, and through the meshing of the belt and pulley teeth, it drives the slider to move in a straight line along the guide rail, achieving position or speed control; In terms of waterproofing, liquid intrusion is blocked by sealing structures such as guide rail sealing strips and end cap waterproof rubber rings. At the same time, the belt is made of water-resistant materials such as chloroprene rubber and polyurethane to avoid water absorption, expansion or aging, ensuring that the transmission accuracy is not affected by humidity.

Structurally, Water Resistant Belt Driven Linear Modules consist of four parts:

The drive unit consists of a waterproof motor (with a sealing ring) and a synchronous pulley. The motor output shaft is connected to the pulley through a waterproof coupling;

The transmission components adopt hydrolysis resistant synchronous belts, matched with aluminum alloy or stainless steel guide rails, and the surface of the guide rails is anodized or galvanized to enhance waterproofing;

The sealing system includes guide rail dust scraper, sliding block end cover sealing lip, and waterproof wiring port to prevent liquid from infiltrating the interior;

The bearing slider is made of engineering plastic or stainless steel material, which is precisely matched with the guide rail to reduce clearance and avoid liquid residue.

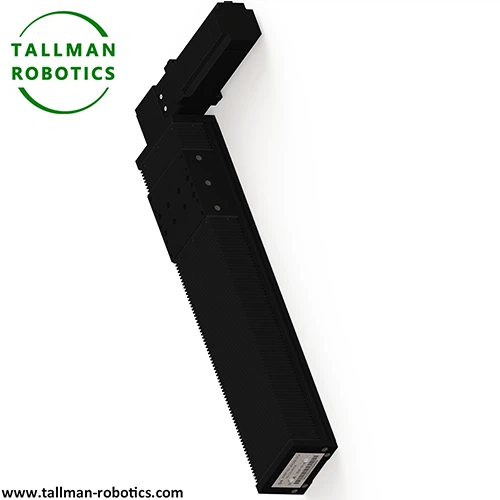

Here, we introduce belt driven IP65 Waterproof Linear Modules,TMBF170, with data as follows:
You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Water Resistant Belt Driven Linear Modules, with its characteristics of high-speed transmission, waterproof and moisture-proof, and long-distance adaptability, is widely used in scenarios with high water, humidity, or frequent contact with liquids. The specific scenarios are as follows:

Food and beverage processing industry: used in filling production lines and packaging equipment to drive precise displacement of material conveying tables and filling nozzles. The equipment needs to be washed with high-pressure water and disinfected with cleaning agents daily. The waterproof performance of Water Resistant Belt Driven Linear Modules can prevent liquid from infiltrating the interior and causing component corrosion. At the same time, the water-resistant material of the belt can resist the corrosion of cleaning agents, ensuring production hygiene and continuity.

Car cleaning and maintenance equipment: in the automatic car washer, drive the brush and high-pressure nozzle to move back and forth along the car body, which needs to directly withstand the impact of high-pressure water flow and the erosion of foam cleaner. Waterproof sealing structure of Water Resistant Belt Driven Linear Modulescan prevent water from entering the transmission system, while high-speed belt transmission can match the fast pace of the car washing process, improving cleaning efficiency.

Agricultural and Horticultural Automation: Suitable for greenhouse irrigation systems, pesticide spraying machinery, and driving spraying devices to move along tracks for long distances. In outdoor environments, Water Resistant Belt Driven Linear Modules can withstand rainwater, dew, and soil moisture. The long travel design of the belt can cover large areas of farmland or greenhouses, and the waterproof motor ensures precise irrigation positioning.

Laboratory and Medical Sample Processing: Linear drive for sample rack handling and pipetting robotic arms in biochemical testing platforms and reagent filling equipment. During the experimental process, there may be reagent leakage and splashing of cleaning solution. The waterproof performance of Water Resistant Belt Driven Linear Modules can protect internal components from chemical liquid erosion, while the low vibration transmission characteristics avoid affecting precision experimental operations.

Outdoor security and monitoring equipment, such as PTZ drivers for monitoring cameras in ports and water conservancy facilities, need to operate stably in rainy, snowy, and high humidity environments. Water Resistant Belt Driven Linear Modules can resist natural precipitation and water vapor intrusion, and the quietness of the belt drive can avoid interference with monitoring equipment. At the same time, the long stroke design meets the needs of large-scale monitoring angle adjustment.

Aquaculture automation: In fish pond feeding machines and water quality monitoring equipment, drive mechanical arms or sensors to move along the edge of the aquaculture pond. The high salinity of seawater or aquaculture water bodies can easily corrode metal components. The anti-corrosion and waterproof design of Water Resistant Belt Driven Linear Modules can extend the service life of the equipment and ensure the precise execution of feeding and monitoring actions.
