Compact Linear Module

Compact Linear Module, also known as Compact Linear Actuator, is a linear transmission device with a compact structure.

Compact Linear Module usually adopts an aluminum alloy frame, which integrates components such as linear guides, sliders, and drive systems (such as ball screws, synchronous belts, or linear motors) into a small volume, occupies less space, and can adapt to narrow installation environments. This type of module has high motion accuracy and positioning accuracy, and can achieve precise linear motion. Compact Linear Module is commonly used in fields such as electronic manufacturing, precision instruments, medical equipment, etc., and can complete tasks such as part handling, positioning, and assembly. In addition, some compact linear modules also have the characteristics of high-speed operation, high load capacity, and good stability, which can meet the needs of different working conditions.

Here,we introduce our steel guide rail embedded linear module,which is a high-precision and high rigidity linear motion device widely used in automation equipment. Its core feature is to embed steel guide rails (such as ball or roller guides) into the interior of the module body, forming a compact and integrated structure.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

Here is a detailed analysis:

Steel Type: Guide Rail Built-in Linear Modules. Bottom plate of the module is steel , sliding block is steel, and cover plate of the sliding seat , and the support seat is aluminum.

TK Steel Guide Rail Built-in linear modules Load specification

TK Steel Guide Rail Built-in linear modules Accuracy Level

TK Steel Guide Rail Built-in linear modules max speed

1. Basic structure
Steel guide rail: High carbon chromium steel is usually used, which undergoes heat treatment and precision grinding to ensure high load capacity and wear resistance (such as HIWIN, THK and other brand guide rails).
Sliding block/slide seat: Built in ball or roller circulation system, achieving low friction motion.
Module body: Aluminum alloy or steel shell, integrated guide rail installation groove, protecting the guide rail from contamination.
Drive unit: Can be paired with servo motors or stepper motors, driven by screw (ball screw, planetary roller screw) or synchronous belt.

2. Core Features
High rigidity: The embedded design of the steel guide rail significantly enhances its bending and torsional resistance, making it suitable for heavy-duty or high acceleration scenarios.
Compact: The embedded guide rail saves space, especially suitable for devices with limited installation space (such as semiconductor equipment, medical machinery).
High precision: The pre tightened design of the guide rail is matched with a precision screw, and the repeated positioning accuracy can reach ± 0.01mm or even higher.

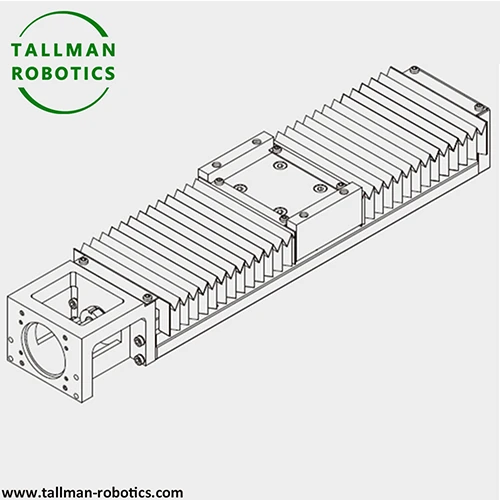

Protective: The module housing can be equipped with a dust cover (such as a retractable protective cover) to prevent dust and chips from entering the guide rail.

3. Typical application scenarios
Precision machine tools: such as the tool magazine movement of CNC machining centers and the positioning of measuring instruments.
Automated production line: Linear axis of robotic arm, precision handling of assembly line.
Semiconductor equipment: wafer transfer robotic arm, lithography machine workbench.
Medical equipment: CT scanning bed translation, surgical robot joint drive.

4. Key parameters for selection
Guide rail type: Ball rail (high-speed light load) vs Roller rail (heavy-duty impact resistant).
Travel itinerary: Choose according to actual needs, paying attention to the maximum allowable length of the module (if it is too long, sag compensation should be considered).
Protection level: IP54 (dustproof and splash proof) or higher (such as IP67 for humid environments).
Lubrication method: Regular grease injection or automatic lubrication system (long-term maintenance free requirement).

5. Maintenance points
Regular lubrication: Use designated grease (such as lithium based grease) and adjust the cycle according to the operating speed.
Cleaning the guide rail: Clean the surface of the rail with a dust-free cloth to avoid scratches from hard particles.
Check the preload force: After long-term use, adjust the slider preload again to prevent the gap from increasing.
The steel guide rail embedded linear module has high rigidity and precision as its core advantages, making it suitable for industrial scenarios with strict requirements for reliability and accuracy. When selecting, it is necessary to comprehensively evaluate factors such as load, speed, and environment, and give priority to well-known brands (such as HIWIN, IKO, Bosch Rexroth) to ensure longevity and performance.
