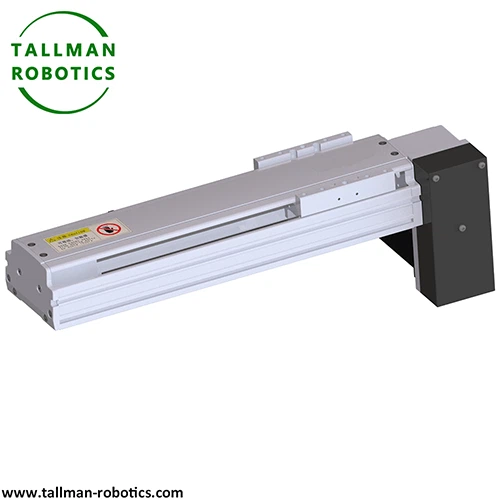

Belt Driven Linear Actuator is a linear motion system based on synchronous belt transmission technology, which achieves precise linear displacement of the load by driving the synchronous belt with a motor. As a core component of industrial automation, it efficiently converts rotational motion into linear motion, combining high speed, economy, and easy maintenance characteristics, and is widely used in light load high-speed scenarios.
Belt Driven Linear Actuator is a precision linear motion mechanism that adopts synchronous belt transmission technology. It transmits power through the meshing of synchronous belt and pulley, achieving precise linear motion with high speed and long stroke. This module perfectly combines transmission efficiency and motion accuracy, becoming an indispensable core component in the field of modern industrial automation.
Typical application scenarios of Belt Driven Linear Actuator:
|
Industrial automation |
PCB board transfer in 3C product assembly line (accuracy ± 0.2mm), high-speed transplanting of automotive interior parts (efficiency increased by 3 times). |
|
Logistics and warehousing |
lifting platform for AGV trolley (travel 2 meters, load 30kg), cross belt module for intelligent sorting machine (single module processing capacity of 1500 pieces/hour). |
|
Medical equipment |
piston drive for medical ventilators (noise ≤ 60dB), linear motion axis for rehabilitation robots (positioning error ± 0.5mm). |
|
Special scenarios |
corrosion-resistant version of food production line (stainless steel guide rail+food grade belt), anti-static module of semiconductor equipment (surface resistance ≤ 10 ΩΩ). |
Belt Driven Linear Actuator, with "high speed, economy, and flexibility" as their core competitiveness, has become the standard solution for light load automation scenarios. As the manufacturing industry transitions towards flexibility and high-speed, it continues to break through performance boundaries through technological upgrades and will play a more critical role in fields such as smart factories and medical robots in the future.
You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics
Here, we introduce our Belt Driven Linear Actuator,with data as follows:
Timing Belt Linear Module for General Environment TM-B-CM
|
Model No |
Body Width (mm) |
Max Payload (kgs) |
Max Stroke (mm) |
Repeatability (mm) |
Drive |
Motor Power (W) |
Application Environment |
|
TM-B45-CM |
45 |
4 |
800 |
±0.04 |
belt |
50/100 |
General |
|
TM-B62-CM |
62 |
16 |
2000 |
±0.04 |
belt |
100/200/400 |
General |
|
TM-B65-CM |
65 |
4 |
800 |
±0.04 |
belt |
50/100 |
General |
|
TM-B85-CM |
85 |
16 |
2000 |
±0.04 |
belt |
100/200/400 |
General |
|
TM-B100-CM |
100 |
40 |
3500 |
±0.04 |
belt |
100/200/400 |
General |
|
TM-B135-CM |
135 |
42 |
3500 |
±0.04 |
belt |
200/400 |
General |
|
TM-B150-CM |
150 |
75 |
3500 |
±0.04 |
belt |
400/750 |
General |
|
TM-B170-CM |
170 |
75 |
3500 |
±0.04 |
belt |
400/750 |
General |
|
TM-B220-CM |
220 |
75 |
3500 |
±0.04 |
belt |
750 |
General |
Timing Belt Linear Module for Dust-proof Environment TM-B-CR
|
Model No |
Body Width (mm) |
Max Payload (kgs) |
Max Stroke (mm) |
Repeatability (mm) |
Drive |
Motor Power (W) |
Application Environment |
|
TM-B45-CR |
45 |
4 |
800 |
±0.04 |
belt |
50/100 |
Clean environment |
|
TM-B62-CR |
62 |
16 |
2000 |
±0.04 |
belt |
100/200/400 |
Clean environment |
|
TM-B65-CR |
65 |
4 |
800 |
±0.04 |
belt |
50/100 |
Clean environment |
|
TM-B85-CR |
85 |
16 |
2000 |
±0.04 |
belt |
100/200/400 |
Clean environment |
|
TM-B100-CR |
100 |
40 |
3500 |
±0.04 |
belt |
100/200/400 |
Clean environment |
|
TM-B135-CR |
135 |
42 |
3500 |
±0.04 |
belt |
200/400 |
Clean environment |
|
TM-B150-CR |
150 |
75 |
3500 |
±0.04 |
belt |
400/750 |
Clean environment |
|
TM-B170-CR |
170 |
75 |
3500 |
±0.04 |
belt |
400/750 |
Clean environment |
|
TM-B220-CR |
220 |
75 |
3500 |
±0.04 |
belt |
750 |
Clean environment |
