Indexing Cam Mechanism is a mechanical transmission mechanism that uses a cam as the core driving element to convert continuous input motion (usually rotational motion) into periodic intermittent indexing motion at the output end through the meshing relationship between the cam and the follower. It is the core component for implementing the "motion pause precise positioning" cycle in automated equipment, widely used in industrial scenarios that require step-by-step operations.
The core function of indexing cam mechanism is to achieve intermittent indexing positioning according to preset rules, which is essentially achieved through:
Geometric parameter design of cam profile: pre-defined parameters such as indexing angle, motion speed, dwell time, etc. at the output end;
Rigid meshing transmission: The cam and the driven part have no gap contact, ensuring stable motion and no cumulative error;
Mechanical self synchronization: Input motion and output intermittent motion are forcibly associated through cam profiles, without the need for additional control system synchronization.
According to the structural form of the cam and the follower, Indexing Cam Mechanism can be divided into the following common types, each with its own applicable scenarios:
|
Type |
Structure Characteristics |
Core Advantages |
Typical Applications |
|
Arc-shaped indexing cam mechanism |
The active cam of the arc-shaped indexing cam mechanism is an arc-shaped structure, with rollers evenly distributed on the driven turntable, and the cam axis is perpendicular to the axis of the driven turntable. |
Strong load-bearing capacity, high division accuracy (up to ± 5 arc seconds), and good high-speed performance. |
Precision machine tool indexing table, automated assembly turntable |
|
Cylindrical indexing cam mechanism |
The active cam of the cylindrical indexing cam mechanism is cylindrical, with spiral grooves machined on the outer cylindrical surface, and the rollers on the driven turntable are embedded in the grooves for meshing. |
Compact structure, flexible indexing angle, suitable for medium and high-speed scenarios. |
Packaging machinery and electronic component testing equipment |
|
Planar indexing cam mechanism |
The active cam is a disc-shaped planar structure, and the driven component is a turntable with rollers. The cam is parallel to the axis of the driven turntable. |
The manufacturing process is simple, the cost is low, and it is suitable for small and medium-sized load scenarios. |
Light industry machinery, food packaging equipment |
|
Indexing cam linkage mechanism |
Cam and linkage mechanism to output linear or compound intermittent motion (such as rotation+translation) |
The motion trajectory is flexible and can achieve complex indexing actions |
Irregular workpiece conveying and multi process integrated equipment |

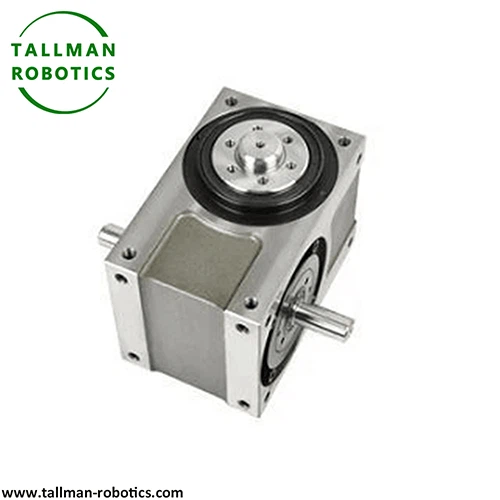

Here In this page, we introduce 110 DF Cam Indexers from TallMan Robotics, which is the top leading manufacturer of Cam Indexer, you will see data sheet, production pictures,vedios as follows:
Also You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics
Indexing Cam Mechanism is the core component for achieving "multi station step-by-step operation" in automated production lines, and typical application scenarios include:
Mechanical processing: CNC machine tool indexing worktable, automatic tool changing mechanism, gear machining indexing device;
Automated assembly: Rotary multi station assembly machine (such as bearing, motor, connector assembly), step-by-step positioning of parts pressing;
Packaging equipment: Rotary labeling machine, intermittent conveying and positioning of bottles and cans in filling machines, and step-by-step folding of paper box forming machines;
Electronic manufacturing: PCB board inspection turntable, workstation switching of chip packaging equipment, LED bead sorting machine indexing;
Food processing: mold division for pastry molding machines, intermittent feeding for candy sorting and packaging, and positioning for beverage bottle cap tightening machines.
Indexing Cam Mechanism is a transmission device that uses the inherent rules of the mechanical structure to achieve intermittent indexing. Its core value lies in using pure mechanical methods to solve high-precision and high stability intermittent motion requirements.
Indexing Cam Mechanism is a key mechanical mechanism for achieving high-precision intermittent indexing motion in industrial automation. It defines the motion law through the geometric design of the cam profile and relies on rigid meshing to ensure a stable and reliable "indexing pause" cycle. It integrates high precision, high stability, and strong environmental adaptability, and is an irreplaceable core component in scenarios such as multi station machining and automated assembly. It provides an important mechanical transmission solution for the high efficiency and precision of industrial production.
