RV Rotary Vector Reducer

RV Rotary Vector Reducer is a high-precision, high rigidity two-stage rotary vector reducer, named "Rotary Vector" after its unique principle of rotary vector transmission. As the core component of industrial robot joints, it achieves precise motion control with high reduction ratio and high torque through a two-stage transmission structure of planetary gears and cycloidal pinwheels.

RV Rotary Vector Reducer is a high-precision reduction device consisting of a planetary gear reduction mechanism and a cycloidal pinwheel reduction mechanism.

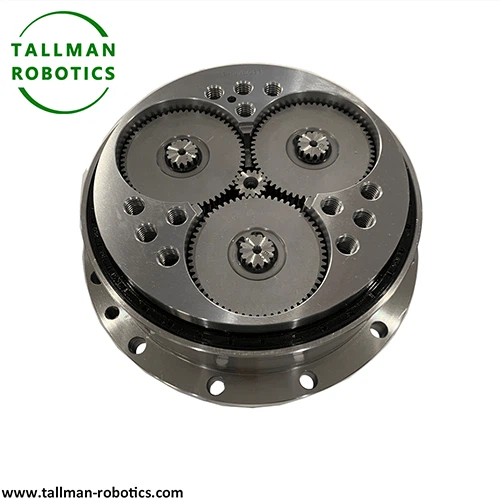

The first stage of RV Rotary Vector Reducer is planetary gear transmission, consisting of a sun gear, planet gears, and ring gear. The sun gear drives the planet gears to rotate around the ring gear, achieving initial deceleration, with a speed ratio typically ranging from 3 to 10 times. The second stage of the RV Rotary Vector reducer is a cycloidal pinwheel drive, where the planetary gear drives the cycloidal gear to rotate through an eccentric shaft. The cycloidal gear meshes with the needle teeth. Due to the special shape of the cycloidal gear, the actual output angle is much smaller than the input angle for each rotation, completing a second reduction and achieving a speed ratio of 30 to 100 times.

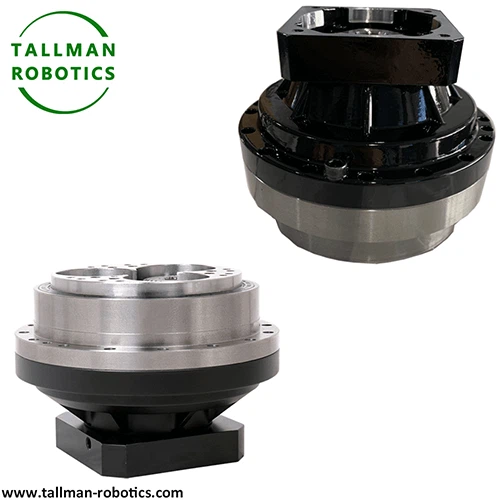

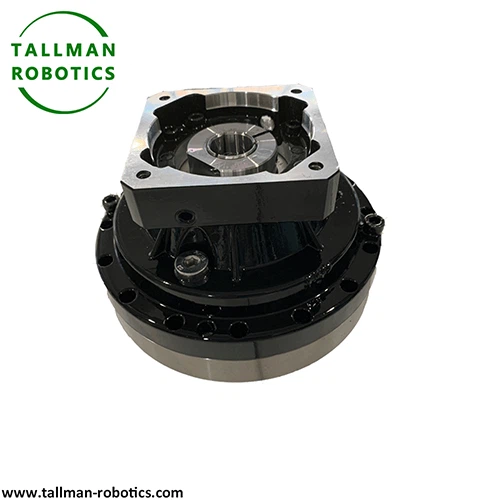

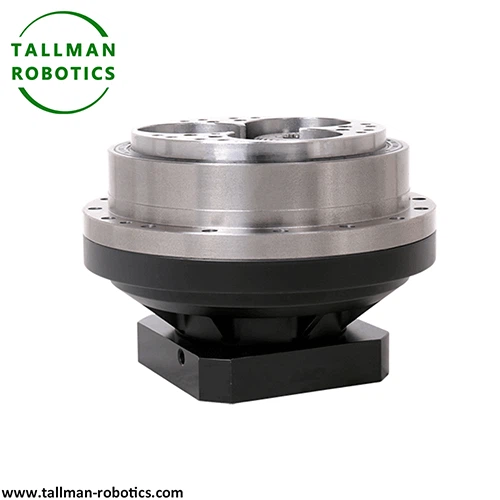

Here In this page, we introduce SE serial RV Reducers from TallMan Robotics, which is the top leading manufacturer of RV Gearboxes, you will see data sheet, production pictures,videos as follows:

Also You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

RV Rotary Vector Reducer is widely used in industrial robots, CNC machine tools, semiconductor equipment, and other fields. They are mainly used in the joint parts of robots, such as machine bases, forearms, shoulders, etc. They can also be used in high-precision CNC rotary tables and the fourth or fifth axis of machining centers.

RV Rotary Vector Reducer has set a benchmark in the industrial transmission field through its unique design of planetary cycloid composite transmission, with three core indicators: accuracy (≤ 1arcmin), rigidity (stiffness coefficient>300N • m/arcmin), and lifespan (>20000 hours). With the advancement of the Made in China 2025 strategy, domestically produced RV reducers are rapidly approaching the international leading level in key indicators such as precision retention and batch consistency. It is expected that the localization rate will exceed 50% by 2025. The deep integration of direct drive motors and intelligent algorithms in the future will drive its continuous evolution towards mechatronics.
