Linear Screw Actuator

What is Linear Screw Actuator?

Linear Screw Actuator is a Reliable Electric Linear Motion for Industrial Automation? A linear screw actuator is a compact electric motion device dedicated to industrial automation. It converts motor rotary movement into straight linear travel via screw thread transmission. Unlike high-precision ball screw units, it adopts sliding thread contact for steady basic motion output. Therefore, it delivers stable and repeatable linear positioning for general automated machinery.

As a core linear motion component, it uses pure electric drive without air or hydraulic support. It fits universal industrial scenarios that prioritize stability over ultra-high precision.

Core Industrial Structure of Linear Screw Actuator

This actuator features a simple and rigid industrial-grade structure. Its key components include drive motor, trapezoidal screw spindle, thread nut, anti-rotation guide and protective outer housing. All parts adopt integrated assembly to avoid loose transmission clearance.

Moreover, the built-in guide structure restricts component rotation effectively. It ensures pure linear displacement and strengthens overall mechanical stability during cyclic operation.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

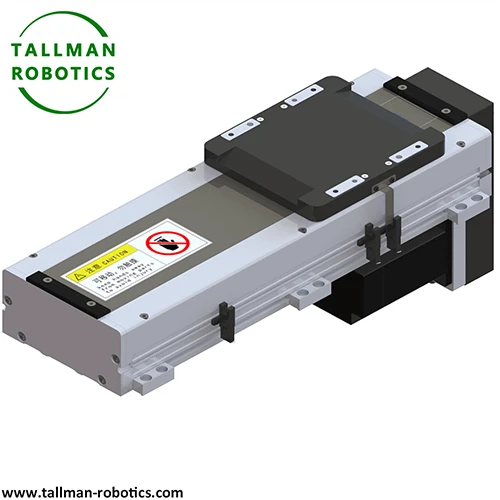

Here, we introduce Linear Screw Actuator, by Fully Sealed Screw drive linear Modules for Clean Environment from Tallman Robot,with following series TMS-CR.

Industrial User FAQ

Q1: What is the core working principle of a linear screw actuator?

It uses motor-driven trapezoidal screw rotation. The thread nut converts rotary force into straight linear thrust. The anti-rotation guide ensures pure linear movement for automated mechanical operation.

Q2: What are the differences between linear screw and ball screw actuators?

Linear screw actuators use sliding thread transmission with stable self-locking performance. They fit general stable motion scenarios. Ball screw actuators adopt rolling transmission for higher precision and faster speed.

Q3: Does a linear screw actuator support static position holding?

Yes. The trapezoidal thread structure provides inherent mechanical self-locking. It holds the load position stably after power cut without extra locking accessories.

Q4: What control devices match this linear motion actuator?

It adapts to mainstream industrial pulse controllers and PLC systems. It supports programmable stroke and speed adjustment to fit diverse automation process logic.

Q5: How to maintain linear screw actuators for long-term use?

Keep the screw thread and guide surface clean. Check wiring connection stability regularly. Avoid ultra-fast continuous operation to protect thread transmission structures
