Linear Stage Actuator

What is Linear Stage Actuator?

Linear Stage Actuator is a Modular Precision Linear Motion Stage for Industrial Automation.

A linear stage actuator is a complete modular linear motion platform for industrial automation. It integrates drive components, guiding structures and moving worktables into one unified unit. It converts motor rotary motion into controllable straight linear travel for precise mechanical positioning. Thus, it delivers ready-to-use linear movement for standardized automated processing tasks.

As an integrated motion stage, it differs from single functional actuators. It provides stable load-bearing travel for diverse industrial mechanical systems.

Modular Stage Structural Composition of Linear Stage Actuator

This linear stage actuator adopts standardized industrial modular structure. Its core components include electric drive motor, precision transmission assembly, linear guide rail, sliding worktable and sealed protective frame. All parts finish pre-assembly and precision calibration.

Moreover, the integrated table design enhances load uniformity. It prevents unbalanced force shift during continuous industrial cyclic operation.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

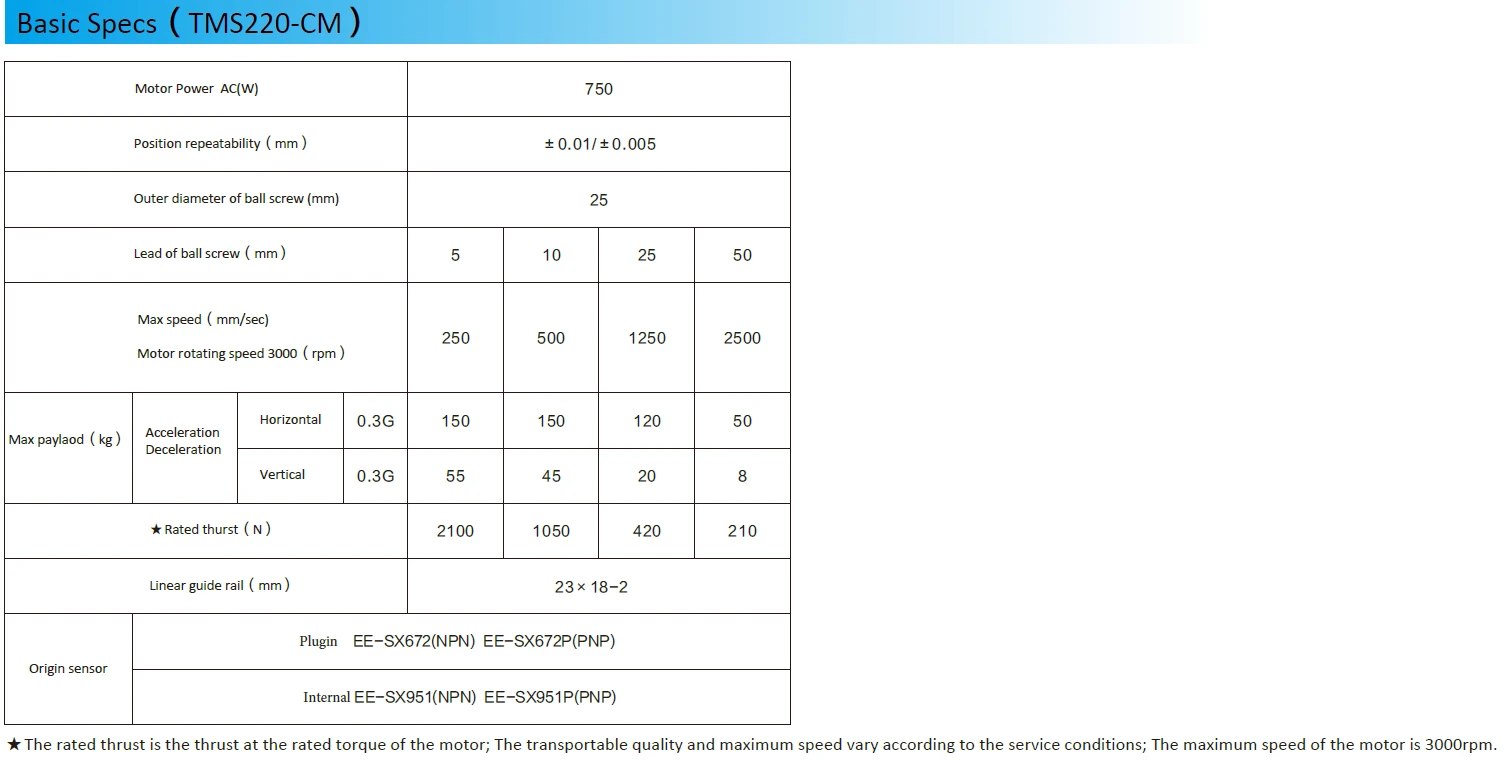

Here, we introduce Linear Stage Actuator, TMS220-CM with data as follows:

Technical Features & Industrial Advantages

Industrial User FAQ

Q1: What differentiates a linear stage actuator from a common linear actuator?

A linear stage actuator is a full motion platform with integrated worktable and guiding system. Common actuators only provide single driving force. The stage model supports direct load placement and independent stable operation.

Q2: What industrial scenarios suit linear stage actuators best?

It fits precision testing platforms, automated assembly stations, laser processing equipment and multi-axis robotic motion systems that need integral linear travel platforms.

Q3: Can linear stage actuators form multi-dimensional motion systems?

Yes. Multiple linear stage modules can stack and combine freely. They build XYZ multi-axis motion platforms to meet complex spatial positioning and processing requirements.

Q4: What control systems support linear stage actuator operation?

It adapts mainstream industrial PLC and pulse motion controllers. It supports programmable stroke and speed adjustment to fit varied automated production processes.

Q5: How to maintain linear stage actuators for long-term stability?

Clean the stage table and guide parts regularly. Check mounting fastening degree periodically. Avoid eccentric load placement to keep balanced linear motion output.
