3 Axis Gantry Robot

3 Axis Gantry Robot is an industrial automation equipment based on a Cartesian coordinate architecture. With its gantry mechanical structure, high-precision motion control, and powerful load capacity, it has become the core equipment for efficiently completing tasks such as handling, assembly, and processing in the manufacturing industry.

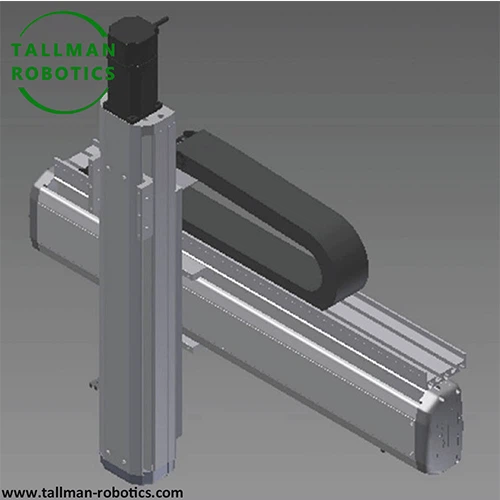

3 Axis Gantry Robot adopts a classic gantry style frame design, consisting of a three-dimensional motion system consisting of horizontal X axis, vertical Y axis (crossbeam), and vertical Z axis. The X-axis is usually supported by two parallel guide rails on the crossbeam (Y-axis), and the Z-axis slide table is vertically installed below the crossbeam, forming a stable "door" structure. The body is made of high-strength steel structure or industrial grade aluminum profiles, equipped with precision ball screws and linear guides, which can carry loads ranging from tens of kilograms to several tons. The vibration amplitude during operation is less than 0.02 millimeters, ensuring stability during high-speed motion. Its motion module is driven by servo motors, with a positioning accuracy of ± 0.05 millimeters and a repeated positioning accuracy of ± 0.02 millimeters, meeting the requirements of micrometer level precision operations. Modular design allows users to flexibly adjust the axis length according to the production line layout (single axis stroke can be extended from 1 meter to over 10 meters), and quickly replace end effectors (such as grippers, suction cups, welding guns, etc.), adapting to diverse tasks.

3 Axis Gantry Robot is equipped with an integrated motion control system that supports programming with PLC, industrial computer (IPC), or dedicated controllers to set motion trajectories through G-code or graphical interface (HMI). The high-end model is equipped with a visual guidance system, which captures the position of the workpiece in real time through industrial cameras and automatically corrects the motion path with AI algorithms. The accuracy of identifying randomly placed materials is over 99.5%. The multi axis linkage function supports complex trajectory planning such as linear interpolation and circular interpolation, such as completing curve welding or surface spraying in three-dimensional space. In terms of human-computer interaction, the system supports manual teaching, offline simulation, and remote monitoring. Operators can adjust parameters in real time through touch screens or handheld terminals, greatly reducing the debugging cycle.

You are welcome to watch more projects or visit our video gallery by Youtube: https://www.youtube.com/@tallmanrobotics

In the industrial field, typical applications of the 3 Axis Gantry Robot include:

Logistics and Warehousing: Perform goods inbound and outbound handling and palletizing operations in intelligent warehouses, and cooperate with conveyor systems to achieve 24-hour unmanned sorting, which is 5-8 times more efficient than traditional manual labor;

Precision machining: In the semiconductor packaging process, vacuum suction cups are used to achieve micrometer level precision gripping and mounting of chip wafers, with a yield rate of 99.9%;

Automotive manufacturing: used for welding and assembly of body components, such as positioning welding of door assemblies, to achieve one-time formation of complex welds through multi axis linkage, reducing manual intervention errors;

Laser Processing: Mount a laser head to complete the cutting and engraving of metal sheets, ensuring a cutting edge roughness Ra ≤ 1.6 μ m with high-precision positioning.

3 Axis Gantry Robot has the characteristics of simple structure, low maintenance cost, and excellent load precision ratio, making it particularly suitable for scenarios that require large stroke and high rigidity operations. Its open architecture supports seamless integration with intelligent devices such as AGVs (Automated Guided Vehicles) and 3D warehouses, building flexible production lines. In the context of Industry 4.0, 3 Axis Gantry Robot is driving the transformation of manufacturing towards automation and less human labor. For example, after a 3C electronics factory introduced gantry robots, the assembly efficiency of mobile phone components increased by 60% and labor costs decreased by 45%. With high reliability and cost-effectiveness,3 Axis Gantry Robot has become a standard equipment for intelligent upgrades in fields such as automotive, new energy, and aerospace, helping enterprises build efficient and stable modern production systems.
