XY Gantry Robot

What is XY Gantry Robot?

An XY gantry robot is a two-axis Cartesian robot that positions an end-effector-such as a gripper, dispensing nozzle, or vision sensor-anywhere within a rectangular work envelope by coordinating independently driven X and Y linear axes. Compared to a general XY gantry system, the term "robot" emphasizes an integrated, programmable unit with its own controller and tooling interface, ready to perform automated pick-and-place, dispensing, or inspection tasks as a standalone work cell component.

Structure

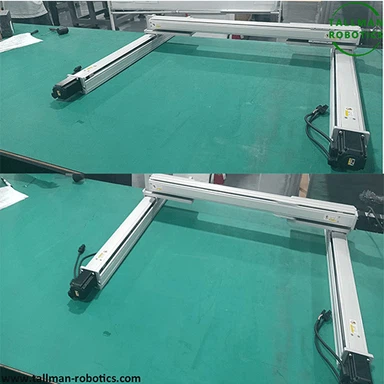

The robot consists of a base frame supporting the Y-axis rails, a traversing bridge or carriage carrying the X-axis assembly mounted perpendicular to it, and an end-effector mounting point at the intersection of both axes. Motion is driven by belt-drive, ball screw, or linear motor mechanisms paired with servo motors, guided by linear bearings, with encoders delivering closed-loop feedback. An integrated motion controller coordinates both axes and typically interfaces with the end-effector (gripper, dispenser, camera) for synchronized task execution.

Selection Considerations

Key factors include X/Y travel range, payload capacity, positioning accuracy and repeatability, maximum speed and acceleration, drive type suited to precision or speed needs, end-effector interface compatibility, and controller programmability (point-to-point vs. continuous path). Cycle time requirements should be weighed against drive technology, since belt drives favor speed while ball screws favor precision and load capacity.

Applications

XY gantry robots are used in electronics assembly, PCB pick-and-place, dispensing and coating applications, small-parts sorting, automated testing stations, and light-duty material handling where compact, precise, repeatable planar motion with integrated tooling control is required.

Installation Considerations

The base frame must be mounted level and square to maintain axis perpendicularity. Belt tension or screw preload should be set per specification, and the end-effector must be securely mounted with verified alignment to the work surface. Cable management for the moving carriage should accommodate full travel without snagging, and coordinated motion accuracy should be validated across the full envelope before production use.
