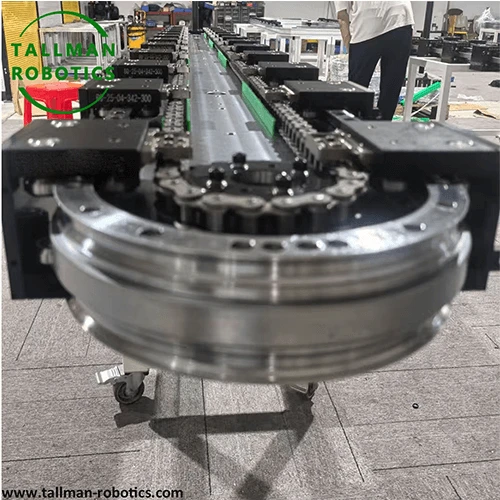

Oval Circular Conveyor

Elliptical closed-loop path

The overall track consists of two parallel long straight segments and two connected semi-circular/arc-shaped short segments, forming an elliptical structure similar to a "runway". The material circulates along this path, completing the main tasks in straight sections and achieving smooth turning in curved sections.

Drive and transmission system

usually using chains, synchronous belts, rollers or belts as the transmission medium, driven by motors to drive the driving wheel/sprocket, driving the tray, fixture plate or conveyor surface to circulate along an elliptical track. The arc-shaped section ensures smooth rotation of the transmission components through precision guiding mechanisms such as arc-shaped guide rails and steering sprockets, avoiding material deviation or jamming.

Modularity and Scalability

Linear segments, curved segments, drive units, tensioning devices, etc. are mostly modular components that can adjust the long axis length, short axis diameter (i.e. ring width), conveying speed, or load capacity of the elliptical shape according to needs. They can also be equipped with positioning sensors, stoppers, etc. to achieve precise control.

Excellent spatial adaptability

The elliptical structure saves more longitudinal space than a pure ring and reduces the abruptness of corners compared to a rectangle. It is suitable for narrow or regular layout sites in factories, especially for scenarios that require "long-distance linear transportation+two end circular turning".

Efficient connection of multiple workstations

Multiple parallel workstations can be arranged for long straight sections (such as assembly, inspection, and packaging). Materials pass through each process in sequence on the straight section, while the curved sections at both ends achieve non-stop turning, forming an efficient mode of "continuous flow+multi process parallel".

Strong conveying stability

High precision linear transmission, suitable for scenarios that require accurate positioning; The curved section reduces impact through optimized guiding design, ensuring that materials (especially vulnerable or heavy parts) run smoothly during turning, without slipping or falling off easily.

Wide load range

Depending on the transmission mode, it can be adapted to light materials (such as electronic parts, food packaging) to medium loads (such as mechanical components, cardboard boxes), and the chain driven version can even transport heavy workpieces, adapting to various industrial environments.

Oval Circular Conveyor

Automotive parts assembly

Arrange welding, tightening, testing and other workstations on long straight sections, transport automotive chassis, doors and other components, and achieve continuous operation of multiple processes through elliptical circulation to reduce the transfer time between workstations.

Food and beverage production line

Convey bottled/canned products on an elliptical path, complete filling, labeling, and packing in straight segments, and rotate in circular arcs to adapt to the narrow layout of the production line and improve space utilization.

Electronic manufacturing industry

used for assembly and testing of circuit boards and electronic devices. Multiple testing stations are set up for long straight sections, and product circulation and reflow are achieved for curved sections, facilitating secondary inspection or rework of non-conforming products.

Logistics sorting and caching

In warehouses or distribution centers, elliptical paths can be used as buffer conveyor lines to temporarily store packages and wait for sorting instructions in a loop. Linear segments connect scanning and sorting mechanisms to improve sorting efficiency.
